Die Set Specifications
| Yield Strength Hardened Steel | 80,000 psi (550 MPa) |
| Recommended max loading @ 50 % | 40,000 psi (275 MPa) |
| Recommended max force | 1217 lb (0.61 ton, 5.4 kN) |
| Typical force for quality pellets | 150-460 lb (0.08-0.23 ton) |
| Die sleeve inner diameter | 5 mm (0.197 inch) |
| Die sleeve height | 40 mm (1.57 inch) |
| Die sleeve outer diameter | 45 mm (1.77 inch) |
| Assembled height with spacers (w/o powder)* | 89 mm (3.5 inch) |
| Assembled height no spacers (w/o powder)* | 73 mm (2.87 inch) |
*If making thicker pellets, the die set can operate just the same without spacers.
Pellet Die set for making 5 mm (0.197 inch) pellets from powders.
With your die set order we’ll include:
- Die sleeve
- Plunger rod
- 2 x spacers
- Base plate

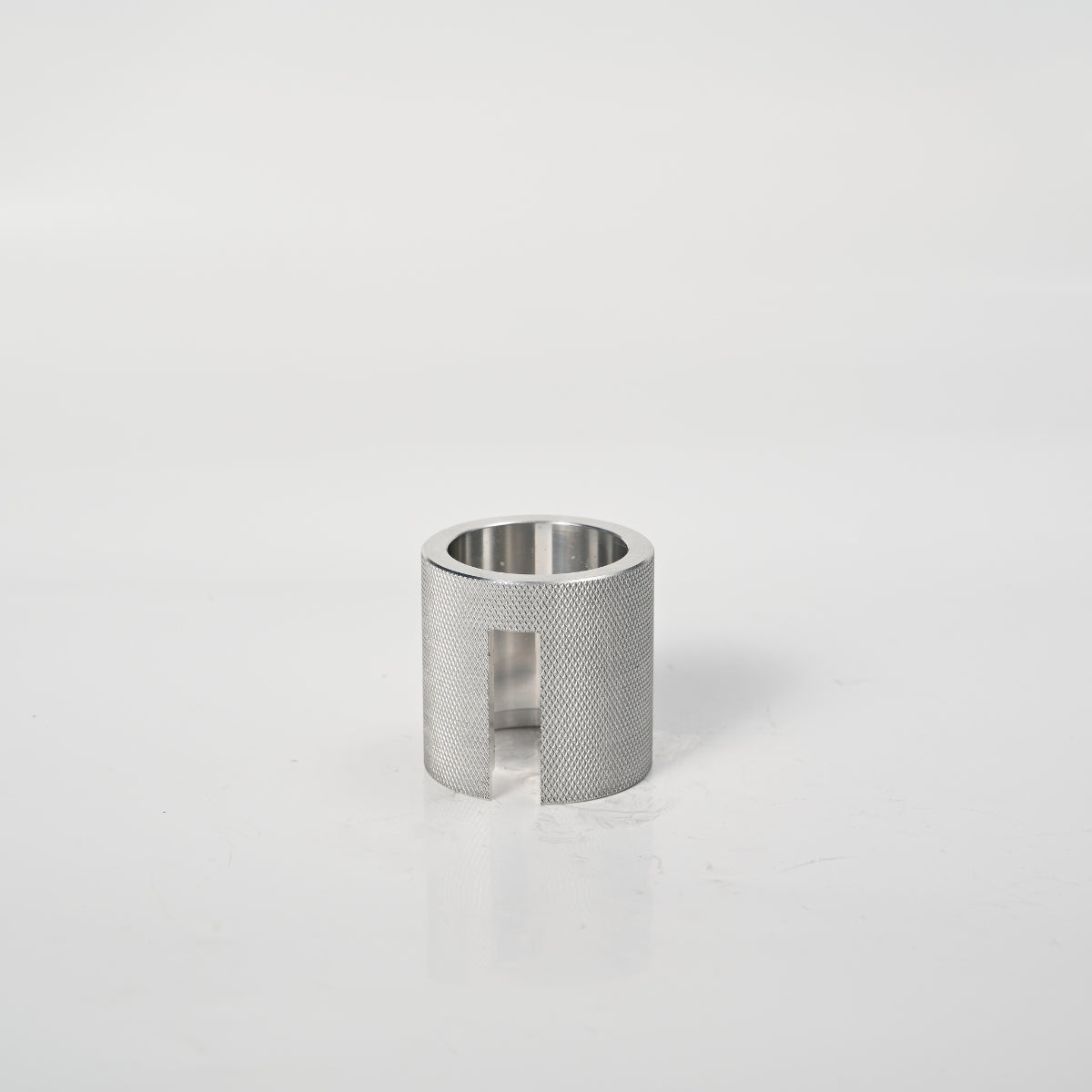

- Aluminium release ring with cutout for viewing pellet during release
Shipping: Free fast shipping across USA and Canada
Material: hardened tool steel (Rockwell hardness >C60) polished to a high tolerance fit.
-
Worldwide shipping, Free to North America
-
Precision Made, Individually Inspected
-
High Strength Heat Treated Steel
This is the smallest die we stock. At such small diameters, you need such a small force (around 100 lb!) for very high stresses on the powder. We do not suggest using with a hydraulic press which does not have an accurate read out for low forces. Do not use this die with a big, heavy press - you can easily exceed the yield stress of the steel. You can even push down hard with your hand or tap it with a mallet to create sufficient force for compaction.
Die made of hardened tool steel (Rockwell hardness >C60) for long lasting trouble free performance. Sleeve is polished to high tolerances to allow the hardened tool steel plunger to slide through perfectly. Plunger and spacers are made from high yield strength steel, machined and polished to high tolerance for the perfect fit. Interior surfaces ground to mirror-like finish.
For an animation of die assembly, powder pressing and release click here.
| Yield Strength Hardened Steel | 80,000 psi (550 MPa) |
| Recommended max loading @ 50 % | 40,000 psi (275 MPa) |
| Recommended max force | 1217 lb (0.61 ton, 5.4 kN) |
| Typical force for quality pellets | 150-460 lb (0.08-0.23 ton) |
| Die sleeve inner diameter | 5 mm (0.197 inch) |
| Die sleeve height | 40 mm (1.57 inch) |
| Die sleeve outer diameter | 45 mm (1.77 inch) |
| Assembled height with spacers (w/o powder)* | 89 mm (3.5 inch) |
| Assembled height no spacers (w/o powder)* | 73 mm (2.87 inch) |
*If making thicker pellets, the die set can operate just the same without spacers.
Safety:
- Always wear googles and safety protection equipment
- Clean well after use to prevent rusting.
- Do not apply pressure beyond shown on table.
- See our tips for making perfect pellets here.
