Collection: Load Cells

3 products

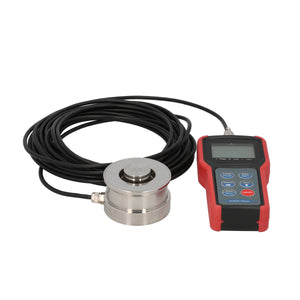

Compression Load Cells with Force Gauge
Regular price
$295.00
Sale price
$295.00
Micro Compression Load Cells
Regular price
$245.00
Sale price
$245.00
S-type Tension Load Cells
Regular price
$375.00
Sale price
$375.00

Load Cells Collection

Introduction

Welcome to our Load Cells Collection, where precision meets reliability. In this comprehensive guide, we'll delve into the world of load cells, exploring their types, applications, and benefits. Whether you're looking for compression load cells, micro load cells, S-type tension load cells, or other variants, we have you covered. Let's dive in and discover how these essential devices can elevate your industrial operations.

What is a Load Cell?

A load cell serves as a critical component in weight measurement systems, converting force or weight into an electrical signal. It plays a vital role in various industries, including manufacturing, transportation, and logistics, where accurate weight measurement is essential for quality control and safety. Load cells operate on the principle of strain gauge technology, detecting changes in electrical resistance when subjected to force. This change in resistance is then converted into an electrical signal proportional to the applied force, providing precise weight readings.

Compression Load Cells

Compression load cells are specifically designed to measure compressive forces, making them indispensable in applications involving high-load situations such as uniaxial pressing. These load cells come in various types, including button type, pancake, pass-through (doughnut), low profile, and miniature, each tailored to specific industrial requirements. The design of compression load cells ensures accurate force measurement, with some variants featuring flat pressing surfaces for direct placement below or above pellet die sets. Our collection offers low-profile button-type compression load cells ideally suited for high-load pressing applications, ensuring accurate readings straight out of the box with the included calibrated indicator. We offer compression load cells from 1 Ton to 100 Tons

Micro Load Cells

Micro load cells, also known as low-profile or miniature load cells, represent a subset of compression load cells designed for precision measurement in small-scale applications. These compact devices offer accurate force measurement while maintaining a small footprint, making them ideal for situations where space is limited. Micro load cells are typically used in conjunction with portable force readers, providing reliable readings for forces ranging from 10 to 2000 kg. Despite their diminutive size, micro load cells boast impressive accuracy, ensuring precise measurements in various pressing applications such as small pellet press die sets, manual presses, vices, or arbor presses.

S-Type Tension Load Cells

S-Type tension load cells offer exceptional versatility, capable of measuring both tension and compression forces with precision. Featuring through holes for mounting threaded rods, these load cells ensure secure installation and reliable performance in a variety of industrial settings. Commonly used for weighing applications by suspending objects, each S-Type load cell comes equipped with an indicator for effortless weight or force readings. With capacities ranging from 1 Ton to 20 Ton, these load cells are meticulously designed to withstand heavy loads while maintaining accuracy and reliability. We offer S-type load cells from 1 Ton to 20 Tons

Beam Load Cells

Beam load cells are commonly used in industrial weighing and force measurement applications, designed to measure loads applied perpendicular to the beam axis. These load cells consist of a metal beam with strain gauges bonded to the surface. When a force is applied perpendicular to the beam, it causes the beam to bend slightly, resulting in a change in electrical resistance in the strain gauges. Beam load cells offer high accuracy and can accommodate large loads, making them suitable for applications such as industrial weighing scales, material handling systems, and tank and hopper weighing. Contact us if you need beam load cells.

Planar Load Cells

Planar load cells, also known as platform load cells, are designed to measure forces applied over a large surface area. They consist of a flat, plate-like structure with strain gauges bonded to the surface. When a force is applied, the plate deforms slightly, resulting in a change in electrical resistance in the strain gauges. Planar load cells offer high accuracy over a large surface area and can accommodate uneven loads, making them suitable for applications such as vehicle weighing systems, industrial platform scales, and material testing applications. Contact us if you need planar load cells.

Single Point Load Cells

Single point load cells are designed for applications where the load may be applied off-center or in multiple directions. They consist of a load-sensitive element mounted on a single support point. When a force is applied, the load-sensitive element deforms slightly, resulting in a change in electrical resistance. Single point load cells offer accurate measurement of off-center loads and are commonly used in applications such as retail scales, counting scales, and checkweighers. Contact us if you single point load cells.

Conclusion

In conclusion, load cells play a crucial role in weight measurement and force monitoring across various industries. Whether you need compression load cells for high-load pressing applications, micro load cells for small-scale precision measurement, or tension load cells for pulling force measurement, our Load Cells Collection has you covered. With reliable performance, accuracy, and versatility, our load cells are the perfect choice for your industrial weighing needs. Explore our collection today and elevate your precision measurement capabilities.
