10 mm Low Profile Pellet Press Die Set
10 mm Low Profile Pellet Press Die Set
10 mm Low Profile Pellet Press Die Set
10 mm Low Profile Pellet Press Die Set
10 mm Low Profile Pellet Press Die Set

Die Set Specifications

Yield Strength 400 Series Stainless Steel

160,000 psi (1100 MPa)

Recommended max loading @ 50 %

80,000 psi (550 MPa)

Recommended max force

9700 lb (4.8 tons, 45.2 kN)

Typical force for quality pellets

610-1825 lb (0.3-0.9 ton)



Die sleeve inner diameter

10 mm (0.31 inch)

Die sleeve height

12 mm (~0.5 inch)

Fillable die sleeve height

8mm (0.31 inch)

Die sleeve outer diameter

25 mm (~1 inch)

Assembled height (w/o powder)*

29 mm (1.14 inch)

10 mm Low Profile Pellet Press Die Set

Vendor
Pellet Press Die Sets
Regular price
$250.00
Sale price
$250.00

Product Description

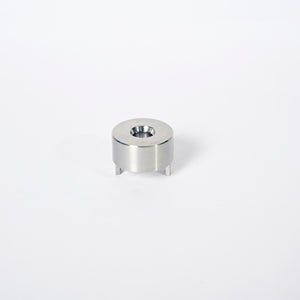

This low profileĀ is for making small diameter 10 mm (0.39 inch) short length <6mm (0.2 inch) pellets. The compact design and high strength heat-treated stainless steel means a higher force can be applied while pressing reducing the chance of plunger breakages.

Features of this die set are:Ā

  • Compact Design: Built for High Loads
  • High Strength Stainless Steel: Heat treated to 160,000 psi
  • Built in ejector sleeve
  • Heatable up to 250Ā°C (482Ā°F)

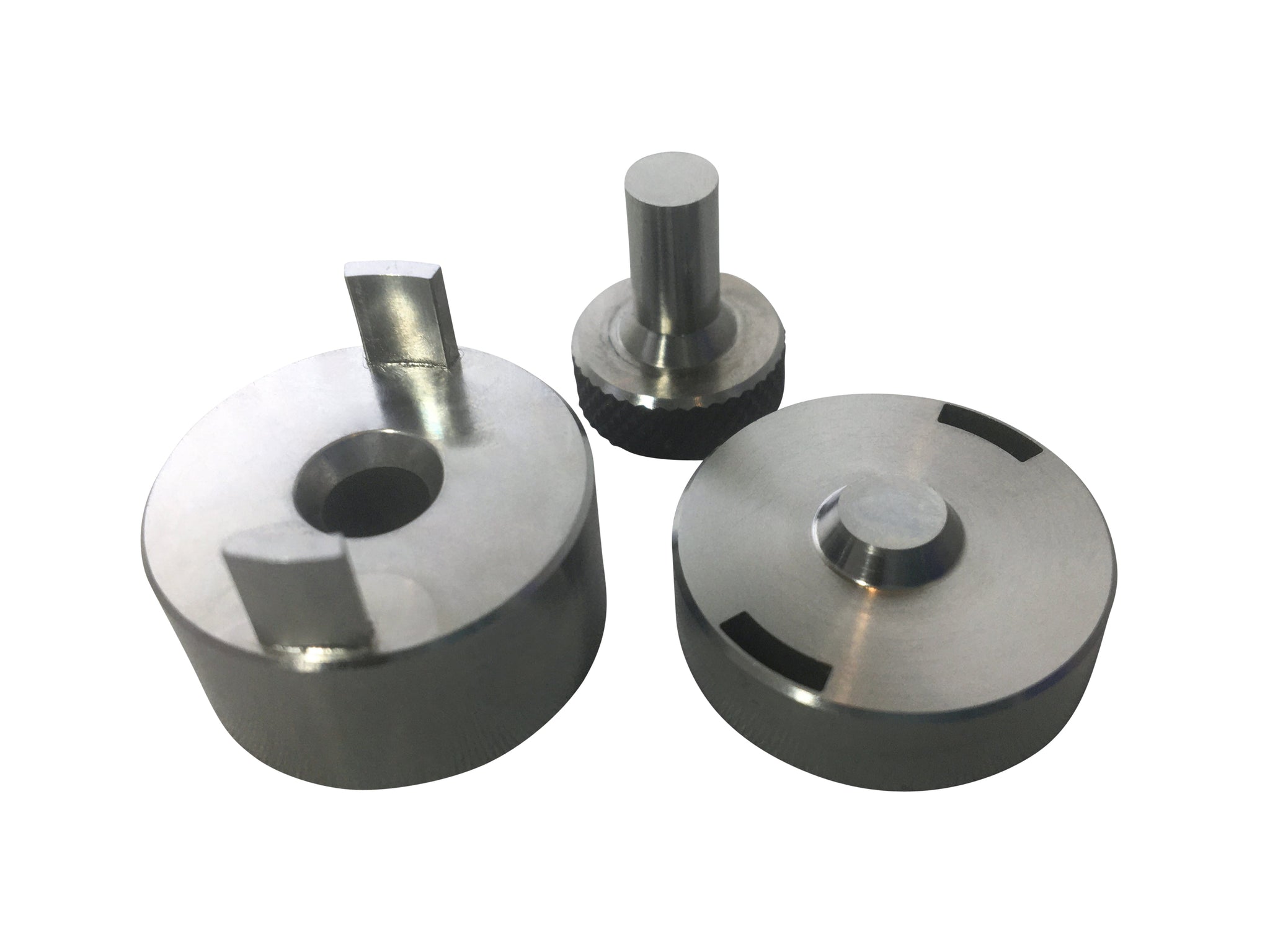

Low profile pellet press die sets include:

  • 1pc Die sleeve
  • 1pc Plunger rod
  • 1pc Base plate

Unlike our standard sets, ejector prongs are designed as part of the die sleeve, rather than a separate part. When using high forces you want a small amount of unsheathed plunger to prevent bucking of the plunger, so I) we keep the plunger short and ii) there are no spacers in the low profile die sets. These sets are made from stainless steel so can be heated to 250 Ā°C (482Ā°F)Ā during pressing.

See video below showing howĀ our low profile die sets work.

Shipping: Free fast shipping across USA and Canada

Material: 400 series stainless steel (tensile strength 160,000 PSI). Material can be heated to max 250Ā°C (482Ā°F)

  • Worldwide shipping, Free to North America

  • Precision Made, Individually Inspected

  • High Strength Heat Treated Steel

Sleeve is ground to high tolerances to allows the plunger to slide through perfectly. Interior surfaces ground to a mirror-like finish (Ra=0.1).

These are some of the smallest die we stock. You typically DO NOT NEED HIGH LOADS FOR GOOD PELLETS ā€“ High loads do not equal better pellets. At small diameters, you only need a small load (around 100 - 2000 lb!) for very high stresses on plunger and the powder. We do not suggest using with a hydraulic press which does not have an accurate read out for low forces. Do not use this die with a big, heavy press - you can easily exceed the yield stress of the steel. Think before hand, if you are close to being able to break steel then you are probably giving enough load to push powder together.Ā  You can even push down hard with your hand or tap it with a mallet to create sufficient force for compaction.


Yield Strength 400 Series Stainless Steel

160,000 psi (1100 MPa)

Recommended max loading @ 50 %

80,000 psi (550 MPa)

Recommended max force

3510 lb (1.75 ton, 15.6 kN)

Typical force for quality pellets

220-660 lb (0.01-0.3 ton 1-3.2 kN)
