15 mm Pellet Press Die Set
15 mm Pellet Press Die Set

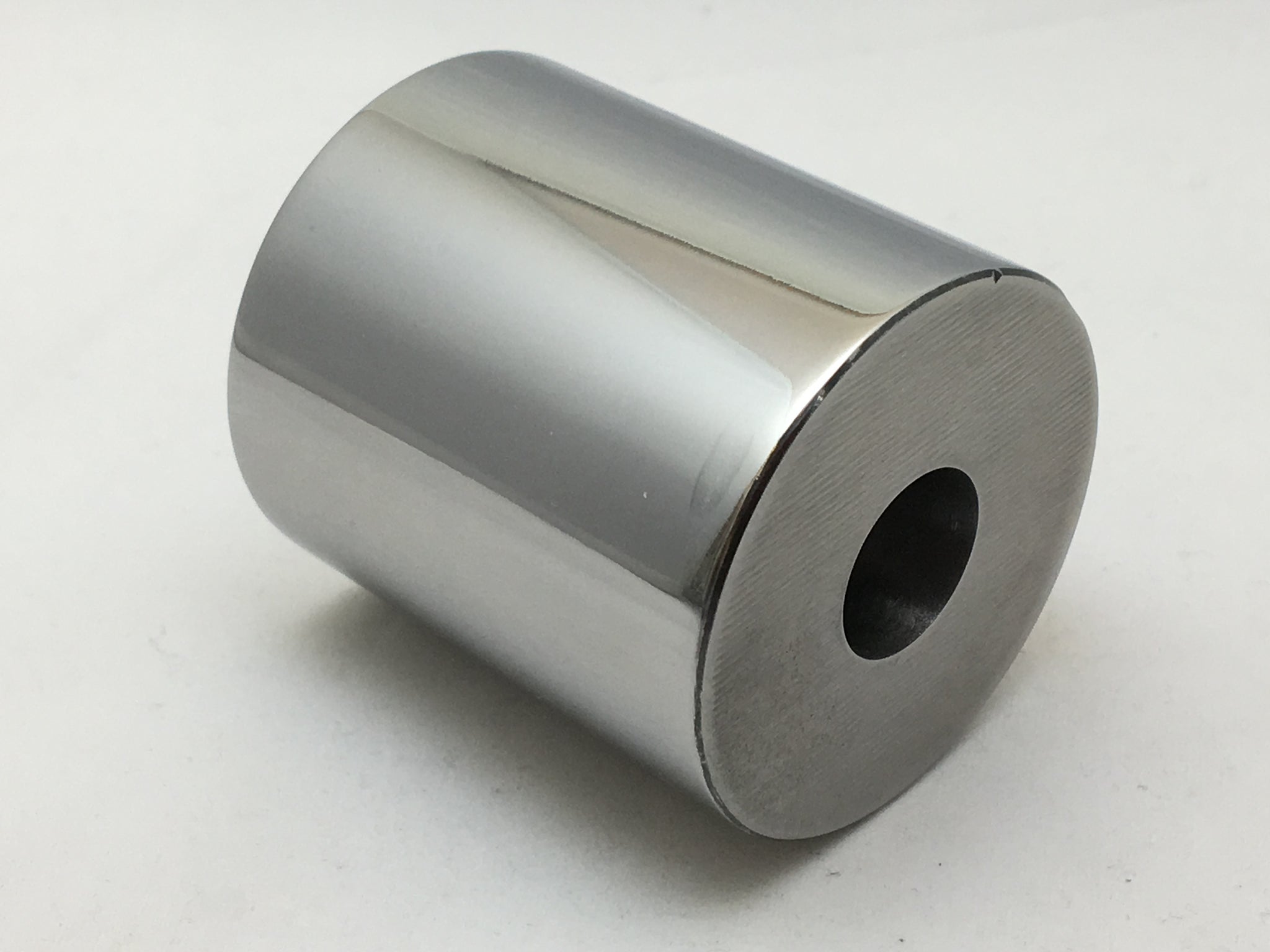

15 mm Pellet Die Sleeve

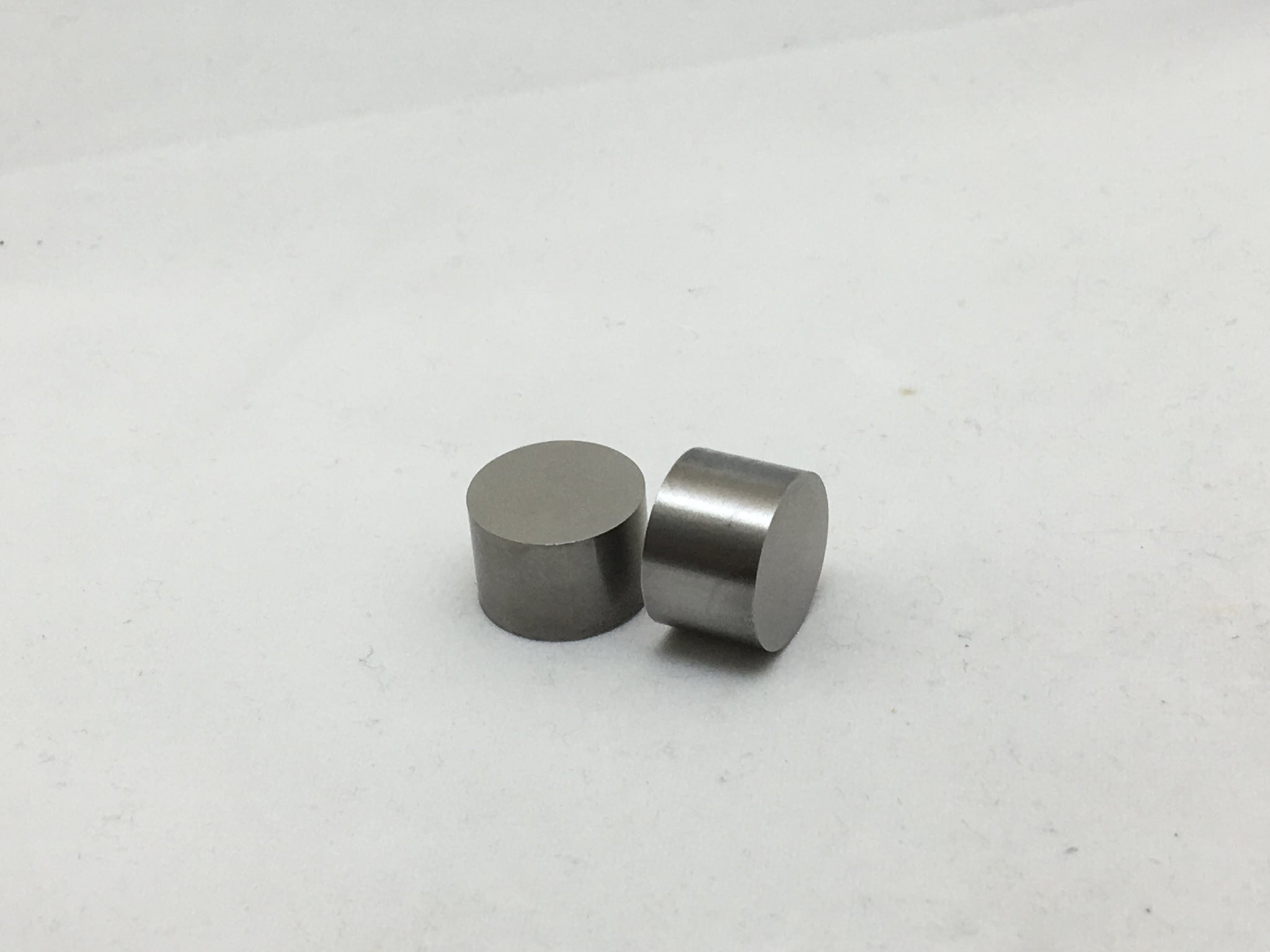

15 mm Pellet Die Spacers
15 mm Pellet Press Die Set
15 mm Pellet Press Die Set
15 mm Pellet Press Die Set
15 mm Pellet Press Die Set
Die sleeve inner diameter
15 mm (0.59 inch)
Die sleeve outer diameter
45 mm (1.77 inches)
Typical force for quality pellets
1350-4100 lb (0.7-2 ton, 6.8-20 kN)
50mm height
90mm height
Die sleeve height 50 mm (1.96 inches)
90mm (3.54 inches)
Assembled height with spacers (w/o powder)* 104 mm (4 inches)
144 mm (5.7 inches)
Assembled height no spacers (w/o powder)* 84 mm (3.3 inches)
124 mm (4.9 inches)
Typical Max pellet length**
25.4mm (1 inch) 50.8mm (2 inch)
Yield Strength Hardened Steel 80,000 psi (550 MPa)
Recommended max loading (@ 50%) 40,000 psi (275 MPa)
Recommended max force
11000 lb (5.5 ton, 49 kN)
Typical force for quality pellets
1350-4100 lb (0.7-2 ton, 6.8-20 kN)

*If making thicker pellets, the die set can operate just the same without spacers.

**Pending on the material you are pressing with and the method of loading the die set.

15 mm Pellet Press Die Set

Vendor
Pellet Press Die Sets
Regular price
$270.00
Sale price
$270.00

Pellet Die set for making 15 mm (~5/8 inch) pellets from powders.

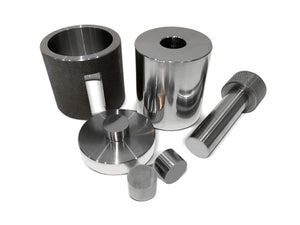

With your die set order we’ll include:

  • Die sleeve
  • Plunger rod
  • 2 x spacers
  • Base plate

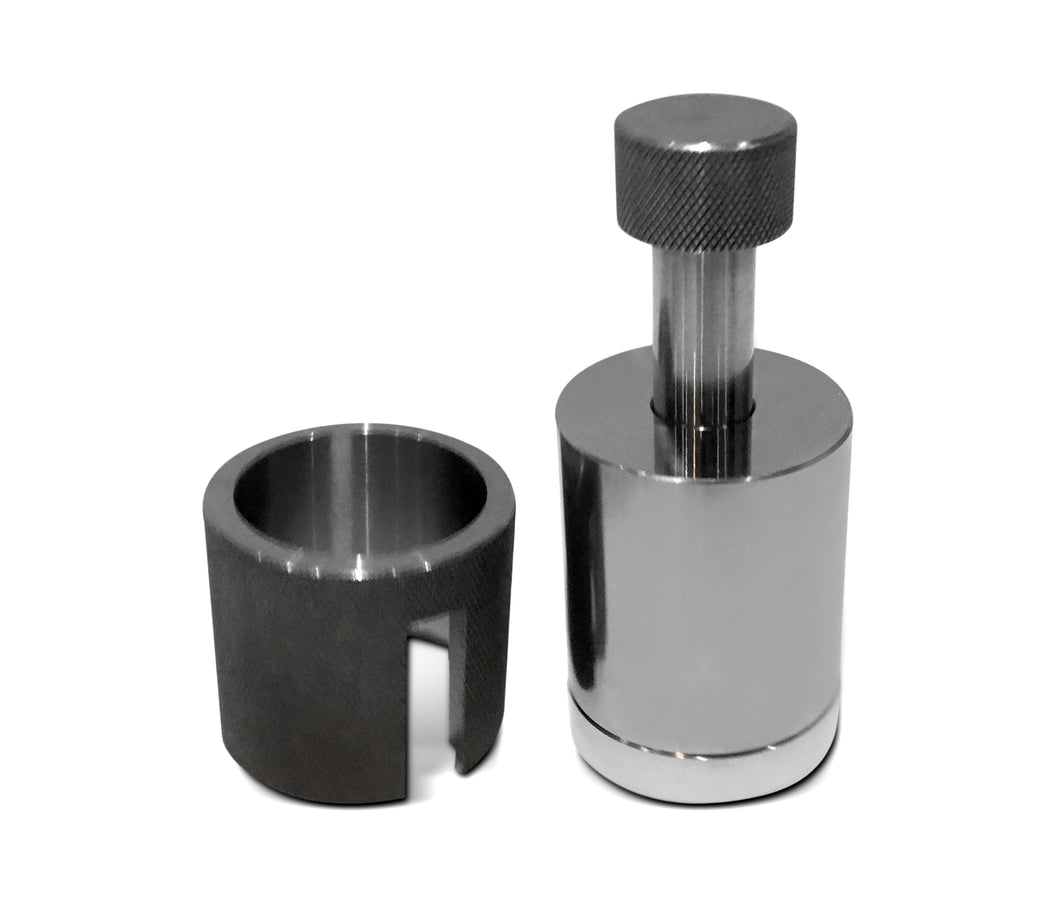

  • Aluminium release ring¬†with¬†cutout for viewing pellet during release

Shipping: Free fast shipping across USA and Canada

Material: hardened D2 tool steel (Rockwell hardness >C60) polished to a high tolerance fit.

  • Worldwide shipping, Free to North America

  • Precision Made, Individually Inspected

  • High Strength Heat Treated Steel

15 mm die sets make pellets of a nice handleable size for a range of applications and analytical techniques so if you are making a thin bisque of material, a battery electrode or electrolyte to fit in a coin cell or running some annealing treatments experiments, the 15 mm pellet die set might be the one for you!

This die set is made of D2 hardened tool steel (Rockwell hardness >C60) for long lasting trouble free performance. The sleeve is polished to high tolerances to allow the hardened tool steel plunger to slide through perfectly (see our videos). Plunger and spacers are made from high yield strength steel, machined and polished to high tolerance for the perfect fit. Interior surfaces ground to mirror-like finish.



Safety:

  • Always wear googles and safety protection equipment
  • Clean well after use to prevent rusting.
  • Do not apply pressure beyond shown on table.
  • See our tips for making perfect pellets here.

For an animation of die assembly:
