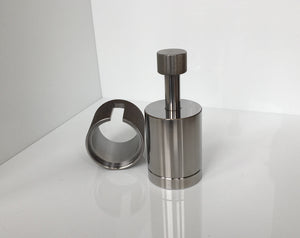

Pellet Die set for making 9.52 mm (3/8 inch) pellets from powders.

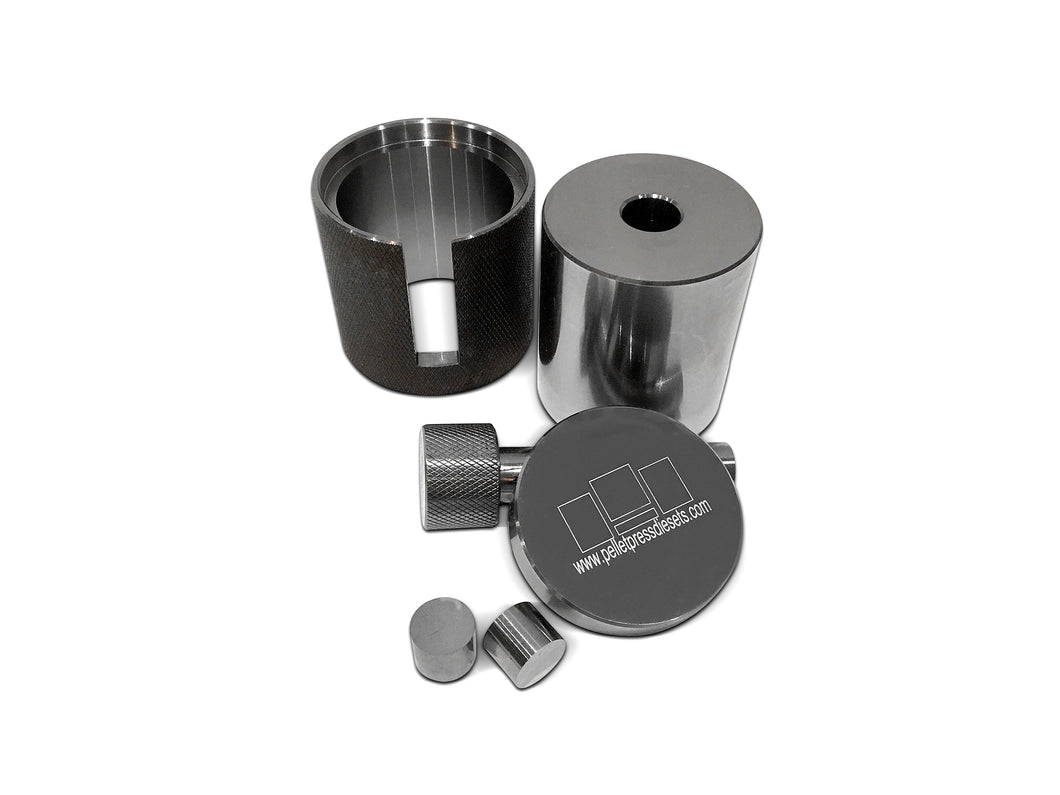

With your die set order we’ll include:
- Die sleeve
- Plunger rod
- 2 x spacers
- Base plate
- Aluminium release ring with cutout for viewing pellet during release
Shipping: Free fast shipping across USA and Canada
Material: hardened tool steel (Rockwell hardness >C60) polished to a high tolerance fit.
We only have one of these in stock. If you need more than 1, please contact us.
Die made of hardened tool steel (Rockwell hardness >C60) for long lasting trouble free performance. Sleeve is polished to high tolerances to allow the hardened tool steel plunger to slide through perfectly. Plunger and spacers are made from high yield strength steel, machined and polished to high tolerance for the perfect fit. Interior surfaces ground to mirror-like finish.
For an animation of die assembly, powder pressing and release click here.
|Yield Strength Hardened Steel||80,000 psi (550 MPa)|
|Recommended max loading @ 50 %||40,000 psi (275 MPa)|
|Recommended max force||7010 lb (3.5 ton, 31 kN)|
|Typical force for quality pellets||875-2650 lb (0.44-1.3 ton, 4.3-13 kN)|
|Die sleeve inner diameter||9.58 mm (3/8 inch)|
|Die sleeve height||50 mm (1.97 inch)|
|Die sleeve outer diameter||45 mm (1.77 inch)|
|Assembled height with spacers (w/o powder)*||104 mm (4.09 inch)|
|Assembled height no spacers (w/o powder)*||84 mm (3.31 inch)|
*If making thicker pellets, the die set can operate just the same without spacers.
- Always wear googles and safety protection equipment
- Clean well after use to prevent rusting.
- Do not apply pressure beyond shown on table.
- See our tips for making perfect pellets here.
