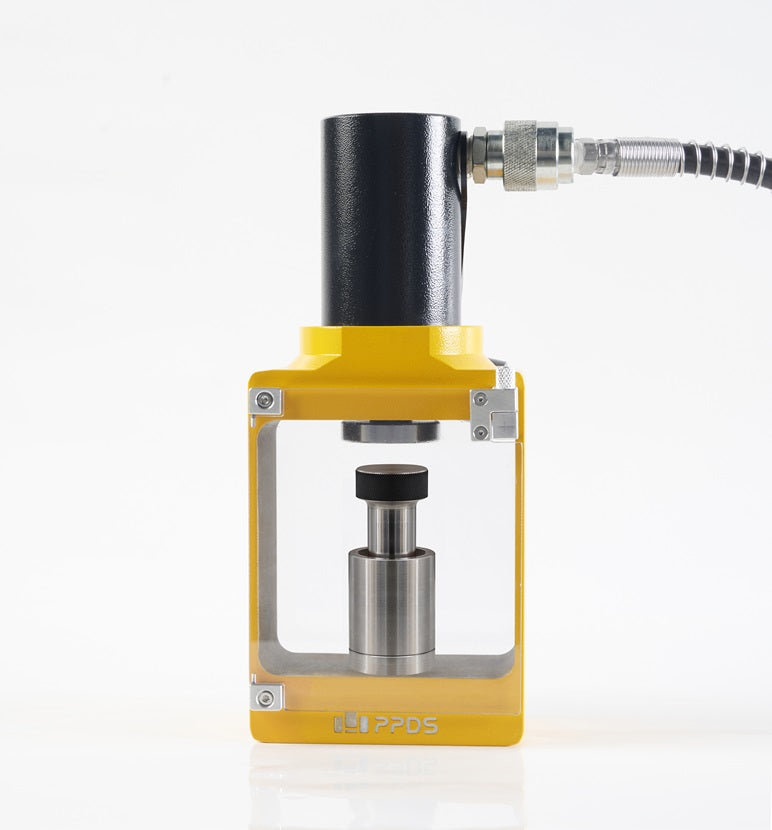

Introducing the D-Frame Hydraulic Press, designed for precision and power. This press is perfect for our pellet press die set customers, delivering a robust 15 Tons of force to handle a wide range of pressing tasks with ease.
(Please note: Die set in image not included)
Key Features
- 15 Ton Force: Capable of exerting 15 Tons of force, making it suitable for heavy-duty pressing applications. Ideal for 25 mm die sets and below.

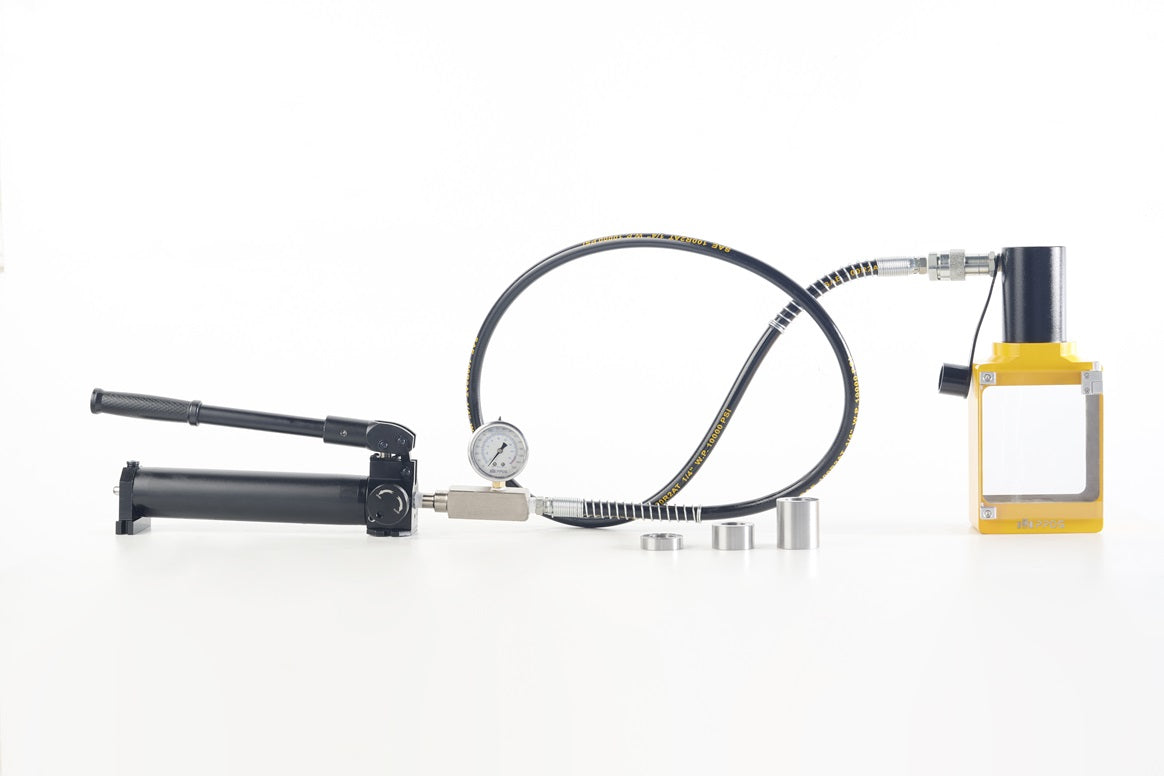

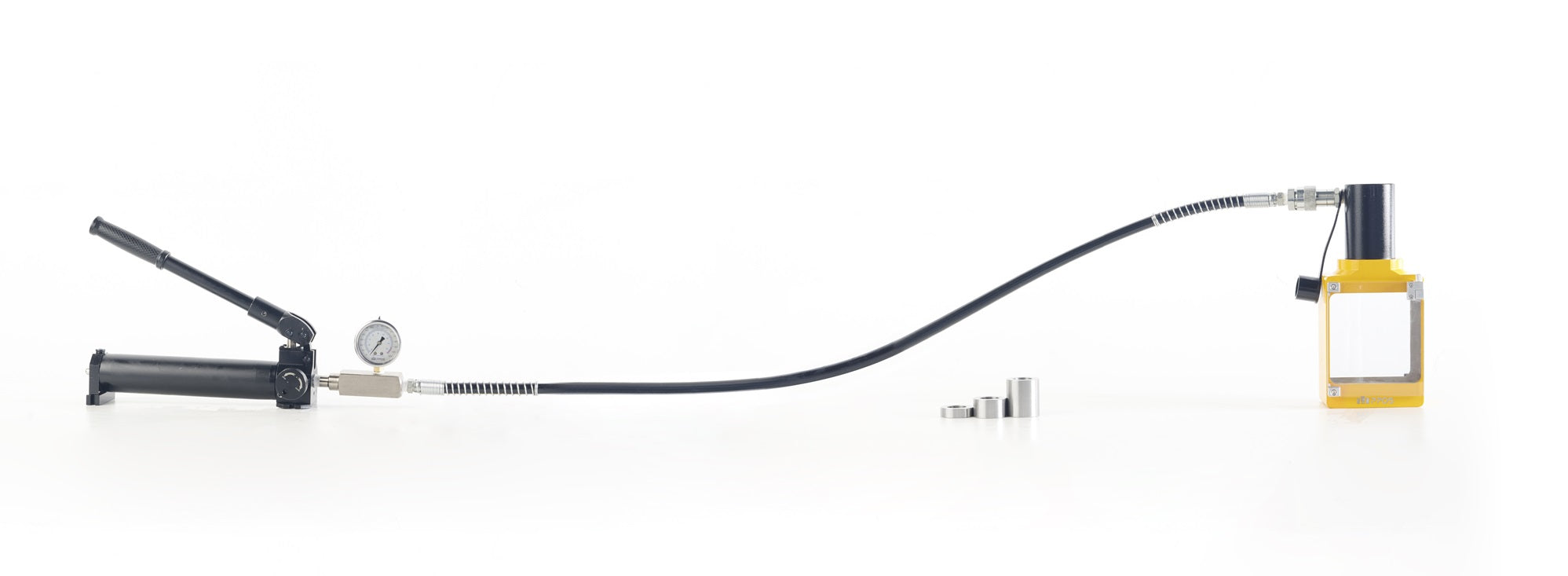

- Separate Hydraulic Cylinder: The hydraulic cylinder is mounted on the top of a rectangular frame and connects to the hand pump or an electric pump via a 3-meter flexible hose, providing flexibility and ease of use.
- 50mm Travel: The hydraulic cylinder provides 50 mm of travel, ensuring accurate and controlled pressing.

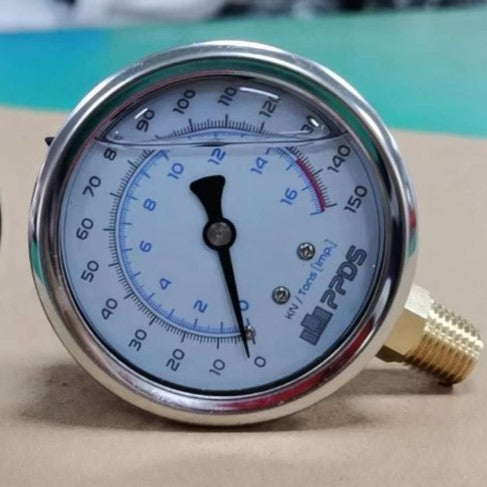

- 15 Ton Force Gauge: A clear and reliable force gauge is mounted on the hand pump or electric pump for precise monitoring of the applied force.

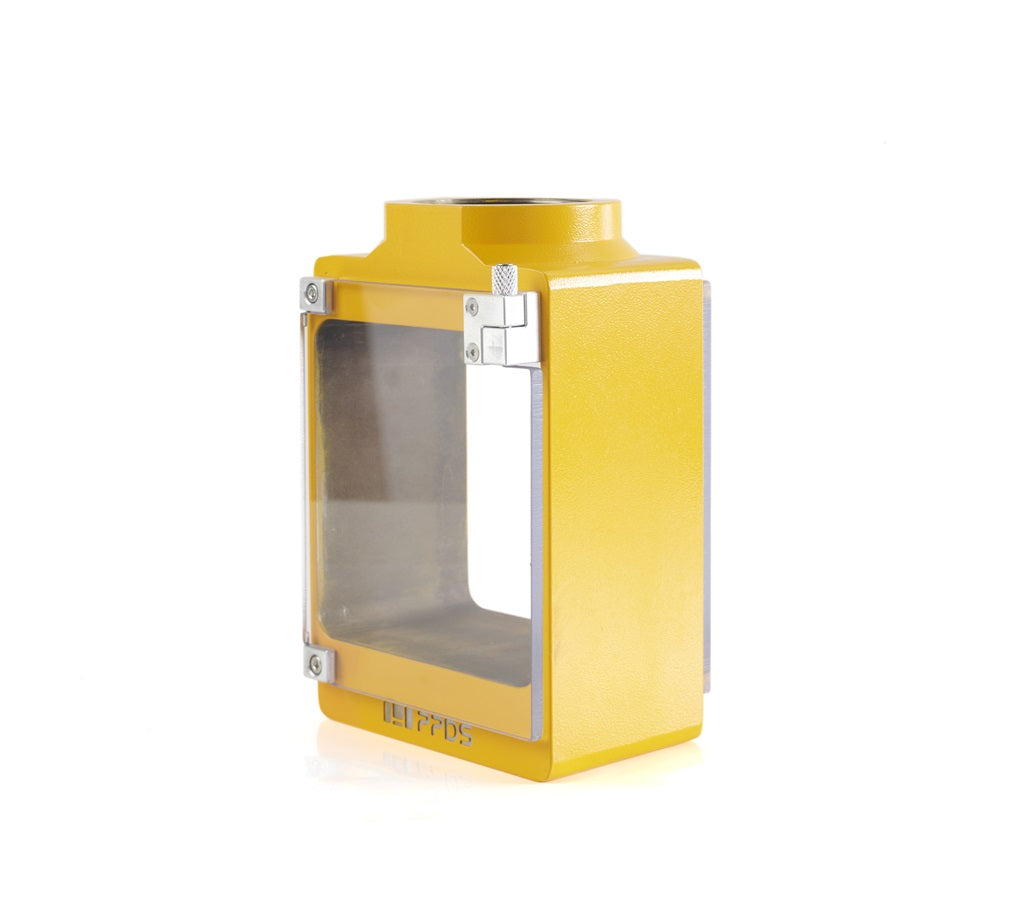

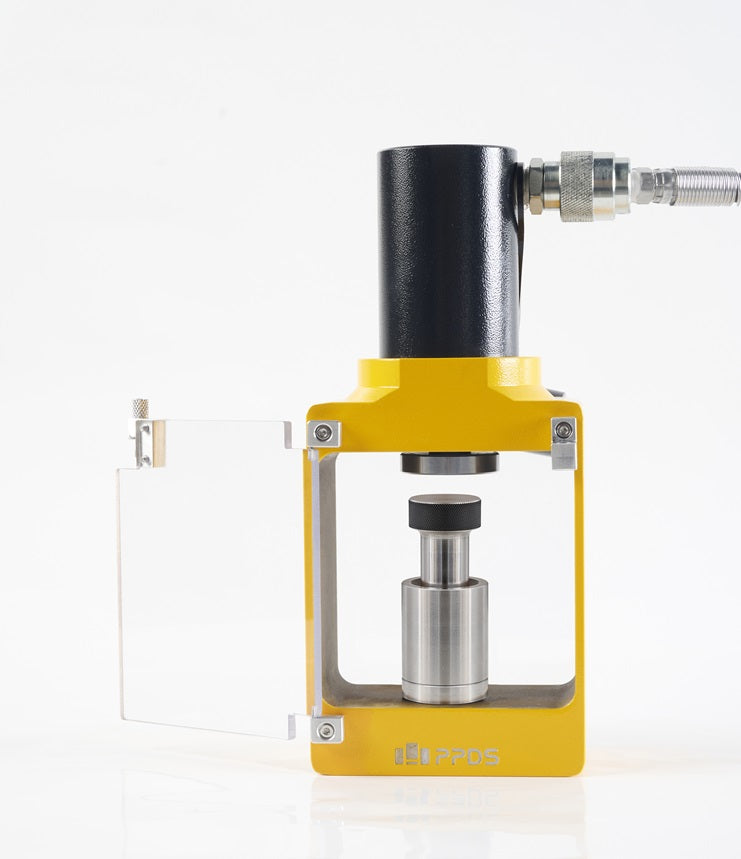

- Shockproof Polycarbonate Safety Cover: For user safety, the press comes with a shockproof polycarbonate cover that shields the pressing area, controlled by a convenient finger latch mechanism.
- 120mm Press Gap: The press features 120mm daylight (gap between the top and bottom surfaces) to accommodate a variety of pressing setups. This press is suitable for use with our standard height (50 mm die sleeve height) dies.
Specifications
| Force Capacity | 15 Tons |
|---|---|
| Cylinder Travel | 50 mm |
| Hose Length | 3 meters |
| Daylight (Gap) | 120 mm |
| Safety Cover | Shockproof polycarbonate with finger latch control |
| Force Gauge | 15 Ton mounted on hose (manual) or on pump (electric) |
The D-Frame Hydraulic Press is engineered for durability, safety, and performance, making it a versatile tool for your pressing needs. Whether you're pressing materials for research, industry, or hobby purposes, this press is designed to deliver reliable and accurate results.
Which Pellet Press Die Sets Can I use in the 15 Ton D-Frame
The 15 Ton Pellet Press Die Sets has a 120 mm gap, so can be used with all our standard height pellet press dies and low profile sets. If you are using a longer die set (90 mm sleeve height) then you'll need a larger space. please contact us.
15 Tons is enough to max out out standard 25 mm ID Die Sets, although it can be used for larger diameter dies, if yo are pressing with very high loads then you may need a larger press for this.
15 Ton D-Frame Hydraulic Press: Assembly and Operation with Manual Pump
15 Ton D-Frame Hydraulic Press: Unboxing, Assembly and Operation with Automatic Pump
Adjusting the Pressing Height of the 15 Ton D-Frame Press with Bench Blocks?
Each D-Frame comes with 3 perfectly parallel circular bench blocks which are 12.5 mm (1/2 inch), 25 mm (1 inch) and 50 mm (2 inch) so you can lift your die set up any of these amounts or stack them in any combination to up to make 87.5 mm (1 3/4 inch) with all 3 stacked up. This leaves you with only 32.5 mm gap and the ram travels 50 mm so it is quick and easy to swap heights with adjustment.
As a bonus we have scooped out the back of each bench block so you can flip then over and use as a release ring for 25 mm ID and under. You will also have your release ring with your die set if you prefer or making larger ID or longer pellets.

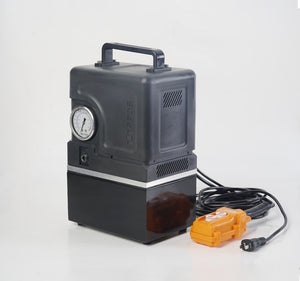

Should I Use a Hand Pump or an Electric Pump for my Hydraulic Lab Press?
If you are pressing small diameter pellets (<10 mm) with low force, the hand press will allow you more precision. If you are repeatedly pressing larger diameter pellets >10 mm with higher loads, then the electric pump will speed you up... a lot.
